SMPTE ST 2110-20 dissector

Wireshark dissector in Lua for SMPTE ST 2110-20 data in RTP


Project Lead: Thomas Edwards (thomas.edwards@disney.com)

to use in Wireshark:

  1. Ensure your Wireshark works with Lua plugins – "About Wireshark" should say it is compiled with Lua
  2. Install this dissector in the proper plugin directory – see "About Wireshark/Folders" to see Personal and Global plugin directories. After putting this dissector in the proper folder, "About Wireshark/Plugins" should list "ST2110-20.lua"
  3. In Wireshark Preferences, under "Protocols/ST2110-20", set dynamic payload type
  4. Capture packets of ST 2110-20
  5. "Decode As" those UDP packets as RTP

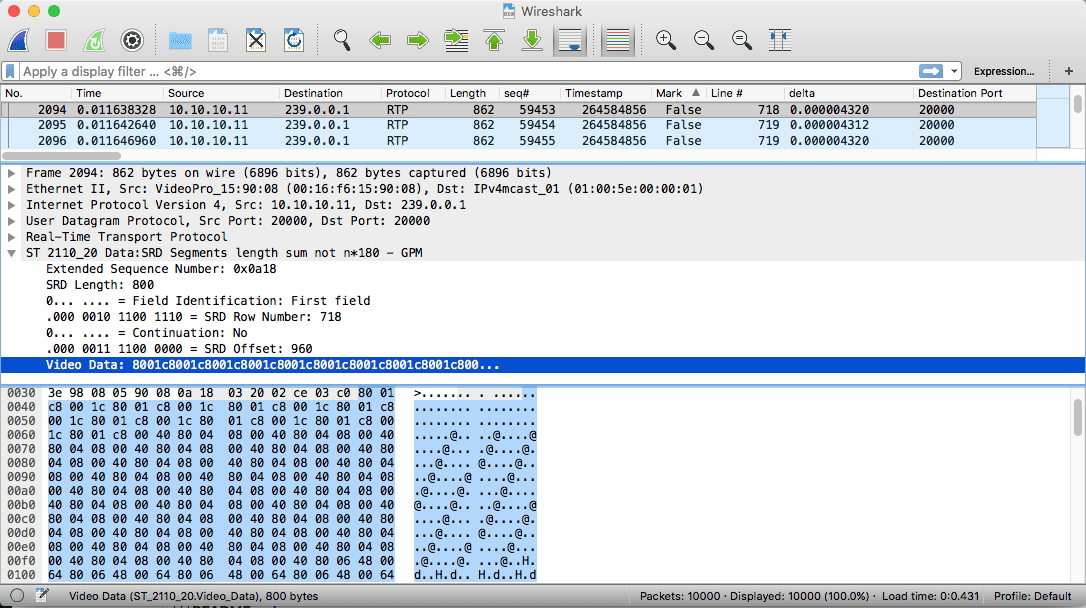

  6. You will now see the ST 2110-20 Data dissection of the RTP payload

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
